디지털 케이블 DIAMOND REVISION AQUEOUS DIGITAL INTERCONNECTS

형식 디지털 인터 케이블
심선 재질 Copper
댐핑제 Contego
캐패시턴스 67.41pf (SPDIF)
17.38pf(AES/EBU)
임피던스 75Ω (SPDIF), 110Ω (AES/EBU)

목록으로

본문

Detail view

The Aqueous line of Interconnects, a continuation of the Aqueous Aureus, initially introduced over 5 years ago, was one of the first cables to use Contego (a specific ratio mixture of Fluid and Ferox). The Diamond Revision of the Aqueous further improves the Fluid Ferox mixture! With the enhanced alloy conductors and the sleek hand-crafted design, the Aqueous Aureus delivers some of the sonically rich and detailed performance for its price point! They are available in 75 Ω SPDIF (RCA & BNC) and 110 Ω AES/EBU (XLR) configurations. If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!

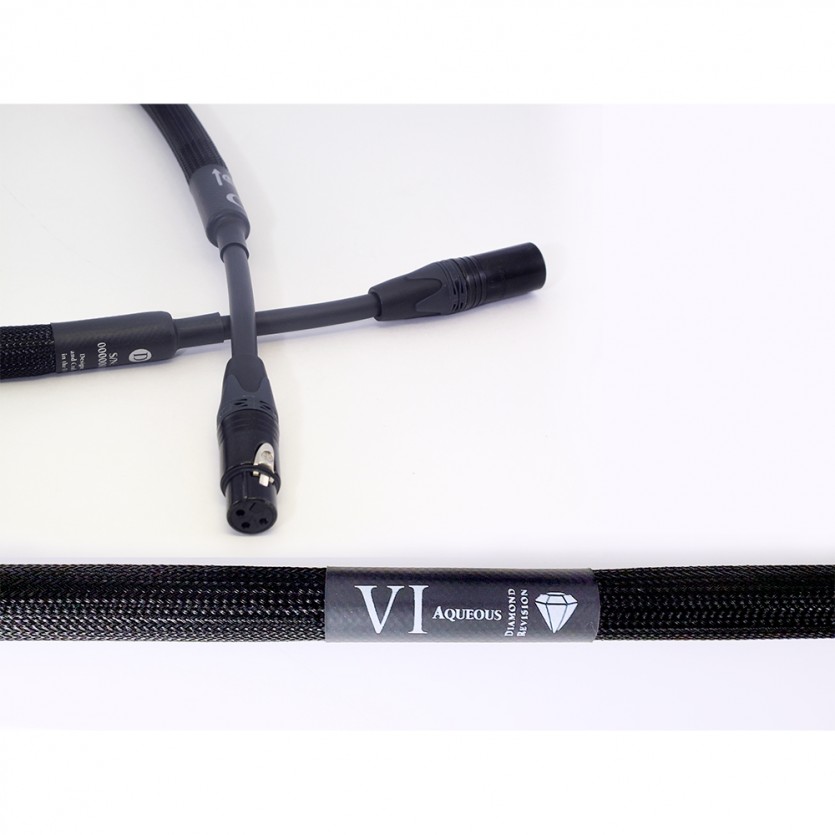

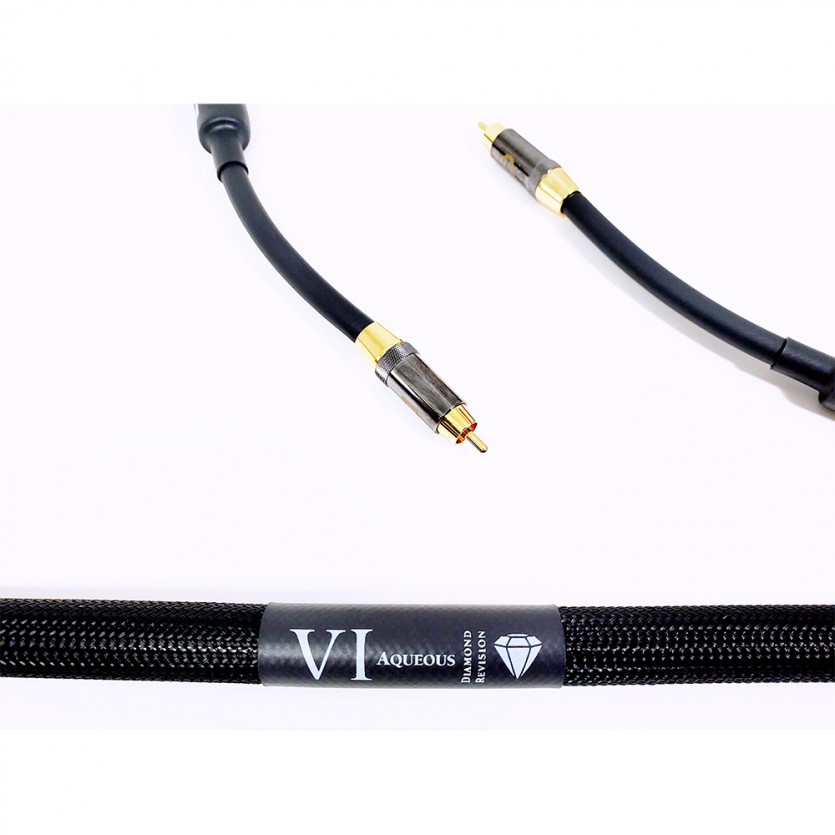

As a part of Purist Audio Design's Diamond Revision, we redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.

All Aqueous cables come packaged in a handsome soft case.

Aqueous Digital Interconnect Specifications
ConductorsCopper
MetalsCopper
Shielding98%
Dielectric MaterialP.E.
gauge (effective)24 AWG
Dampening MaterialContego
Capacitance SPDIF67.41 pF
Capacitance AES/EBU17.38 pF
Impedance SPDIF75 Ω
Impedance AES/EBU110 Ω
Estimated Break-In Time100 Hours
Cable Diameter5/8" OD
Connector TypePurist RCA (SPDIF) / Modified XLR (AES/EBU)
Material TreatmentTriple (3x) Cryomag©
