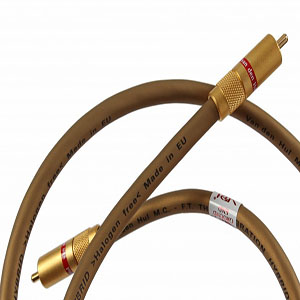

The Inegration Hybrid RCA 인터커넥트 케이블

형식 RCA 인터커넥트 케이블
심선 구리/아연/은 합금 + 리니어 스트럭쳐 카본

목록으로

본문

Detail view

The INTEGRATION HYBRID (Halogen Free)

The very first member of our very own state-of-the-art FUSION SERIES. It’s a triple shielded audio interconnect suitable for both balanced and unbalanced uses.


  • • The INTEGRATION HYBRID’s design is based on our worldwide acclaimed D - 102 III HYBRID.
  • • Highly resistant to interference noise: star quad configuration with four stranded FUSION conductors with a very effective triple layered shielding.
  • • Low capacitance presents a low load to the signal source. This means that longer runs of cable can be used without losses.
  • • Hybrid technology means the conductors are embedded in a conductive layer containing our Linear Structured Carbon ®).
  • • Highly versatile. Besides being suitable for both unbalanced and balanced uses, it also serves perfectly as a music instrument or microphone cable.
  • • Fusion Technology conductors are strong and are much less susceptible to break under frequent bending than the average copper cables.
  • • Gold colored jacket in rugged HULLIFLEX ® jacket acts as an excellent protection for heavy use.


The INTEGRATION HYBRID (Halogen Free)

material Fusion
product category musical instruments cable
product category Interconnect - Balanced, Unbalanced, Analogue, Mid-range
cable type Triple screened quadruple core / star quad (Balanced)
conductor material FUSION TECHNOLOGY: amorphous Cu/Zn/Ag alloy + HYBRID: Linear Structured Carbon ® saturated layer(s)
design purpose Balanced and unbalanced audio interconnect; Microphone and musical instrument cable
eff conductor Cores: 0.16 mm² / Cores: ~AWG 25 / Cores: 7; Screen: 180
external diameter 7.8 mm.
jacket colors Gold tone
resistance Cores: 0.43 Ohm/m.; Screen: 0.62 Ohm/100 m.
capacitance 86 pF/m. (in balanced star quad mode)
characteristic impedance ~110 Ohm (in balanced star quad mode); Allows AES-EBU standard digital audio transmission
insulation Cores: PE foam; Jacket: HULLIFLEX ® / 300 Vrms min.
connector types Our RCA type C - 8.0; Neutrik XLR; Neutrik 1/4" (6.3 mm.) Jack/Phone plug
