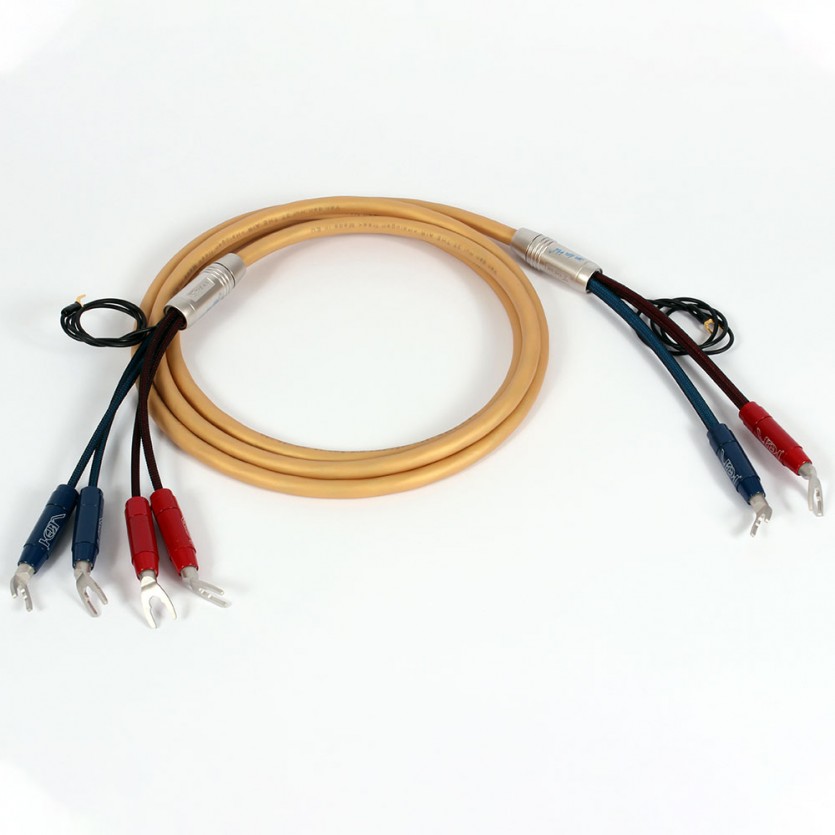

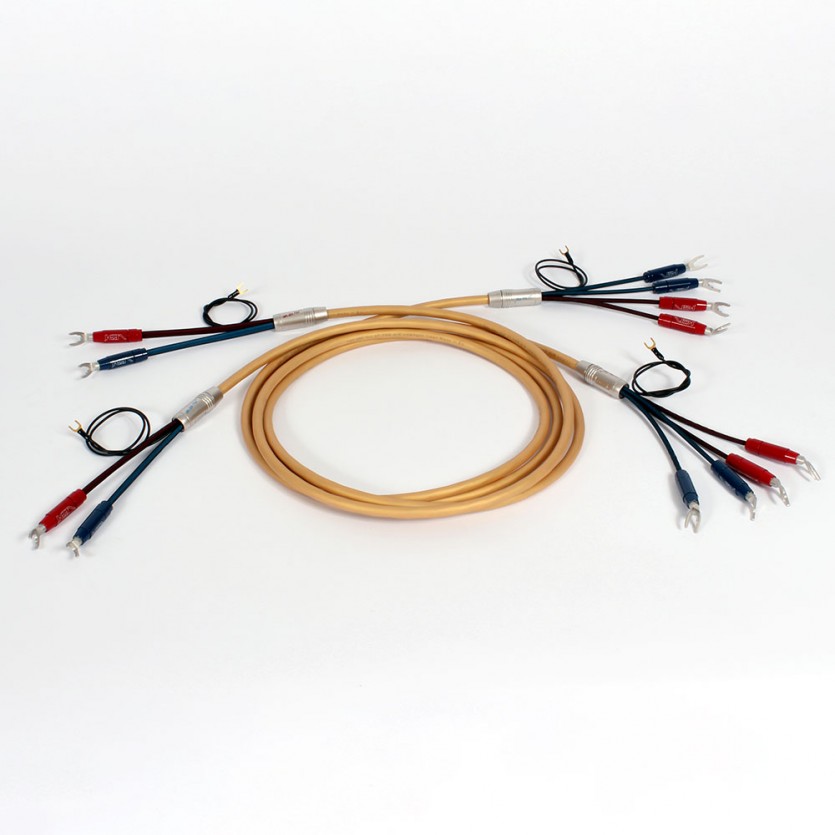

3T The Air (halogen free)

Our entry model 3T loudspeaker cable.

Next to the four lead 3T speakercable The CLOUD Hybrid, van den Hul has introduced a four lead cable in approx. the same diameter as the Fusion Technology The Inspiration but then equiped with our new 3T conductors, called 3T The AIR.

The 3T The AIR cable is a four lead construction that can be used for:

  • • stereo (2-2),
  • • bi-wire (2-4) and/or
  • • bi-amp (4-4) applications.

The Termination is done with our special 3T Rhodium plated Berri busconnectors.

Each of the 4 AWG – 12 conductors consists of 42 single 0.23 mm wide 3T strands.
The quad construction gives you the option to work both bi-wired and/or four-wired in the connections between your power amplifier and loudspeakers.

The 4 x AWG – 12 lay-out is your guarantee for a perfect combination of superb sound and an affordable price. And the extra ground-lead in the centre allows you to make a separate ground connection between the cross-over shielding of your loudspeakers (especially Tannoy is using this technology) and a separate ground connection on your power amplifier.

The outer diameter is close to 10.0 mm.

3T The Air (halogen free)

material3T
product categoryspeaker cable - Quad-lead, Bi wiring, Bi amping, High-end
cable typeFour lead conductor + ground wire
conductor material3T
design purposeLoudspeaker cable
eff conductorEach single lead: 2.0mm / AWG 12 / 42 Ground lead: 0.9mm / AWG 19 / 21
external diameter10.0 mm
jacket colorsGold
insulationHULLIFLEX ® 4 / 300 Vrms min.
connector types3T Rhodium plated Berri busconnectors.
standard sales unitsCan only be factory terminated, not available on reel.
